零泄漏 低噪音 高揚程 大流量
Zero leakage Low noise High lift Large flow
SX系列磁力泵采用磁力無接觸傳動，具有絕佳的密封性能，廣泛應用于，模具溫度控制系統，工業冷卻系統，化工設備，供給水系統等行業和設備，可輸送不含固體顆粒的清水、導熱油燃油、冷媒等液體。
SX series magnetic pump adopts magnetic non-contact transmission and has excellent sealing performance. It is widely used in industries and equipment such as mold temperature control system, industrial cooling system, chemical equipment, water supply system, etc. It can transport clear water, heat transfer oil fuel, refrigerant and other liquids without solid particles.

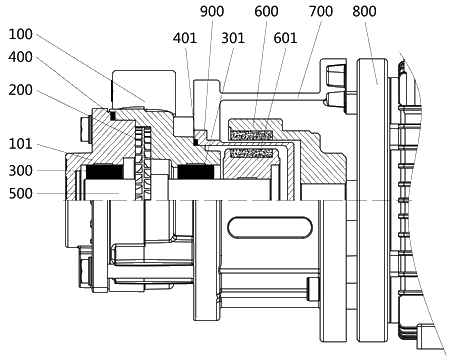

結構簡圖/Cross-sectional drawing
零件名稱材及質表/Component and material list
| 編號/No. | 零件/Component | 材質/Material |
| 100 | 泵體/Pump body | SUS304 |
| 101 | 泵蓋/Pump cover | SUS304 |
| 200 | 葉輪/Impeller | SUS304 |
| 300 | 軸承/Sliding bearing | 碳化硅/SiC |
| 301 | 軸承/Sliding bearing | 碳化硅/SiC |
| 400 | 密封墊/Gaskets | 石墨/Flexible graphite |
| 401 | 密封墊/Gaskets | 石墨/Flexible graphite |
| 500 | 軸/Spindle | 合金/Hard alloy |
| 600 | 外磁轉子/Outer magnetic coupling | 釤鈷永磁/Sm2Co17 |
| 601 | 內磁轉子/Innet magnetic coupling | 釤鈷永磁/Sm2Co17 |
| 700 | 機座/Bracket | SUS304 鑄鐵/Cast iron |
| 800 | 電機/Motor | |
| 900 | 隔離套/Separating can | SUS304 |
性能參數/performance parameter
| 型號/Model | 最大流量 | 揚程/head m | 口徑Diameter | 電機/Motor380V50Hz | 泵浦自重 | ||||
| Max flow | 最高 | 工作揚程 | 入口 | 出口 | 功率 | 匹數 | 轉速 | weight | |
| (L/min) | Max head | Use head | Inlet | Outlet | Kw | Hp | Speed | Kg | |
| SX2025 | 25 | 45 | ≤20 | G1/2" | G1/2" | 0.37 | 05 | 2800rpm | 9.5 |
| SX3035 | 35 | 50 | ≤30 | 0.5 | 0.7 | 10.5 | |||
安裝尺寸/Installation size

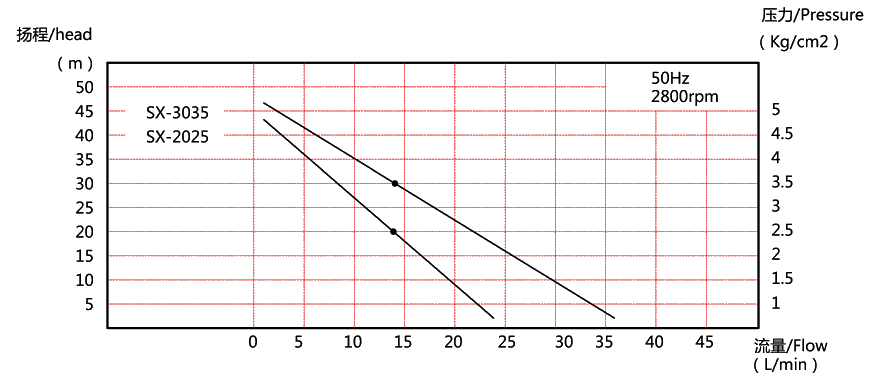

流量特性/Flow characteristics
上述性能曲線為對應于水溫在20℃時以全速運行時所測得數據。
The above performance curve corresponds to the data measured when the water temperature is 20℃ and running at full speed.
為最高揚程工作點，水泵應于最高揚程工作點以下運行，超出最高揚程工作點運行時會有電機超負荷的風險。
As the working point with the highest lift, the pump should be operated below the working point with the highest lift, and there
will be the risk of motor overload when running beyond the working point with the highest lift.
will be the risk of motor overload when running beyond the working point with the highest lift.
